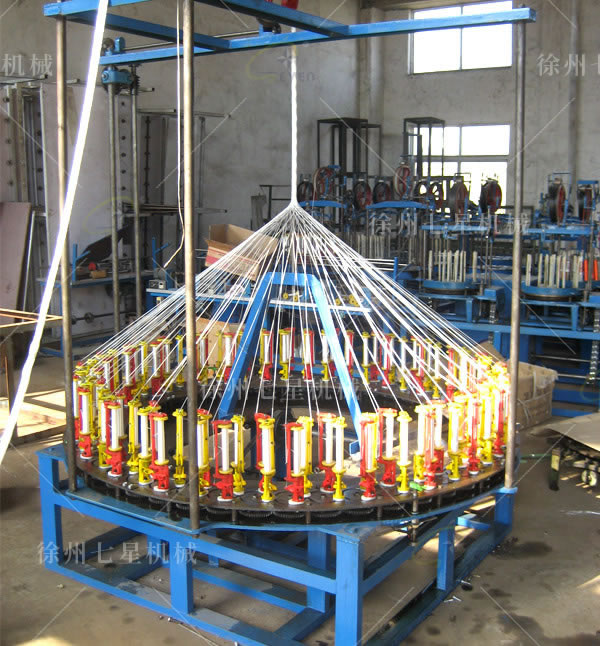

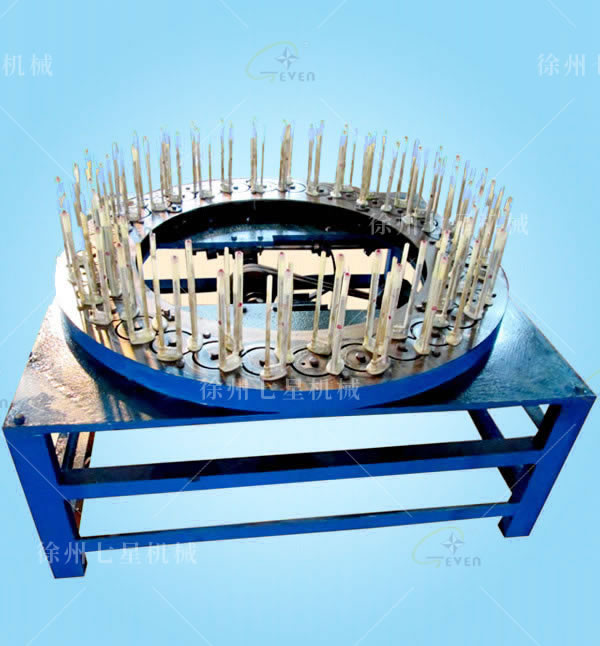

110系列低速編織機
110 series low speed braiding machine
該系列編織機主要用于各種較大規格繩帶（工具繩、游艇用繩、索具繩等）、電線電纜屏蔽層、高壓膠管、大規格玻纖管等的編織。
This series of braiding machines are widely used to braid medium-size ropes (such as tool ropes, yacht ropes, rigging ropes etc.), shielding layer of cables, high pressure hoses, big size fiberglass tubes and so on.
|
|
規格(錠數) |
編織形式 |
盤尺寸 |
編織范圍 |
皮帶輪轉速（RPM） |
錠子轉速（RPM） |
|
1 |
8 |
方/Square |
Ø320*8 |
0.5*0.5—1.5*1.5 |
140 |
60 |
|
2 |
16 |
圓/Round |
Ø464*8 |
5-10 |
140 |
30 |
|
3 |
24 |
圓/Round |
Ø600*8 |
5-20 |
140 |
20 |
|
4 |
32 |
圓/Round |
Ø736*8 |
10-30 |
140 |
15 |
|
5 |
36 |
圓/Round |
Ø810*8 |
10-35 |
140 |
13.3 |
|
6 |
40 |
圓/Round |
Ø900*8 |
15-40 |
140 |
12 |
|
7 |
48 |
圓/Round |
Ø1040*8 |
20-50 |
140 |
11 |
|
8 |
56 |
圓/Round |
Ø1190*8 |
25-55 |
140 |
10 |
|
9 |
64 |
圓/Round |
Ø1335*8 |
30-60 |
140 |
9 |
|
10 |
72 |
圓/Round |
Ø1480*8 |
35-65 |
140 |
7 |
|
11 |
96 |
圓/Round |
Ø1880*8 |
45-75 |
140 |
6 |
|
12 |
120 |
圓/Round |
Ø2300*8 |
60-100 |
140 |
4 |
